Celery分布式任务队列入门(二)-环境配置

实践在Docker容器中配置Celery运行环境。

创建Docker容器

在容器 Ubuntu:16.04 系统中来搭建,创建容器:

1
$ docker run -it --name celery1 -p 5672:5672 -p 15673:15672 -v /home/tiger/dckerfile/celery1:/app ubuntu /bin/bash

需要注意的是在Docker容器中不需要 sudo 命令,默认即是 root 权限。下面的命令请根据自己所在系统类型自行添加 sudo 操作。

更新软件源
1
2
3
4
5
# echo "deb http://cn.archive.ubuntu.com/ubuntu/ xenial main restricted universe multiverse" >> /etc/apt/sources.list
# echo "deb http://cn.archive.ubuntu.com/ubuntu/ xenial-security main restricted universe multiverse" >> /etc/apt/sources.list
# apt-get update
安装Erlang依赖

Erlang可以通过包管理器来安装,或者直接从官方网站下载安装包来安装。

执行如下命令安装:

1
2
3
4
5
6
cd /tmp
wget http://packages.erlang-solutions.com/ubuntu/erlang_solutions.asc
# apt-key add erlang_solutions.asc
# apt-get update
# apt-get install erlang
# apt-get install erlang-nox

或者直接从网站 Erlang Downloads 下载 .deb 安装包来安装。

安装RabbitMQ

执行如下命令通过包管理器来安装:

1
2
3
4
5
6
# echo "deb https://dl.bintray.com/rabbitmq/debian xenial main" | tee /etc/apt/sources.list.d/bintray.rabbitmq.list
# wget -O- https://www.rabbitmq.com/rabbitmq-release-signing-key.asc | apt-key add -
# apt-get update
# apt-get install rabbitmq-server

发现通过上面方法安装的 Erlang VersionErlang/OTP 18 [erts-7.3] [source] [64-bit] [smp:2:2]
RabbitMQ Version"RabbitMQ","3.5.7"

都不是官网上的最新版本,但在软件源中来说已是可安装的最新版本。所以如果想要安装官方的最新版本,可以采用直接从官网获取安装包的方式来安装。

安装官方最新版

在Ubuntu系统下直接下载 rabbitmq*.deb 安装包:

从地址 Installing on Debian / Ubuntu 看到最新版本是 3.7.0 rabbitmq-server_3.7.0-1_all.deb

也可以从网址 Released Artifacts 选择其他指定版本。

下面以 rabbitmq-server_3.7.0-1_all.deb 为例安装:

1
2
# wget https://dl.bintray.com/rabbitmq/all/rabbitmq-server/3.7.0/rabbitmq-server_3.7.0-1_all.deb
# dpkg -i rabbitmq-server_3.7.0-1_all.deb

如果提示依赖其他的包,执行如下命令安装依赖包:

1
# apt-get -f install

然后再次执行安装:

1
# dpkg -i rabbitmq-server_3.7.0-1_all.deb

我在执行 apt-get -f install 时遇到问题,输出提示是要移除 rabbitmq-server ,并没有自动安装其他依赖:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
root@b792ae940e3e:/app# dpkg -i rabbitmq-server_3.7.0-1_all.deb
Selecting previously unselected package rabbitmq-server.
(Reading database ... 7744 files and directories currently installed.)
Preparing to unpack rabbitmq-server_3.7.0-1_all.deb ...
Unpacking rabbitmq-server (3.7.0-1) ...
dpkg: dependency problems prevent configuration of rabbitmq-server:
rabbitmq-server depends on erlang-nox (>= 1:19.3) | esl-erlang (>= 1:19.3); however:
Package erlang-nox is not installed.
Package esl-erlang is not installed.
rabbitmq-server depends on logrotate; however:
Package logrotate is not installed.
rabbitmq-server depends on socat; however:
Package socat is not installed.
dpkg: error processing package rabbitmq-server (--install):
dependency problems - leaving unconfigured
Processing triggers for systemd (229-4ubuntu21) ...
Errors were encountered while processing:
rabbitmq-server
root@b792ae940e3e:/app# apt-get -f install
Reading package lists... Done
Building dependency tree
Reading state information... Done
Correcting dependencies... Done
The following packages will be REMOVED:
rabbitmq-server
0 upgraded, 0 newly installed, 1 to remove and 2 not upgraded.
1 not fully installed or removed.
After this operation, 13.3 MB disk space will be freed.
Do you want to continue? [Y/n]

所以,我选择手动安装 Erland.deb 包。

从 网站 RabbitMQ Erlang Version Requirements 中可以看到RabbitMQ和Erlang版本之间的对应关系。这里上面的我按照的是RabbitMQ的 3.7.0 版本,所以我可以选择Erlang的最新版即 20.1.7 版本安装。下载地址见:Erlang Downloads

1
2
3
# wget http://packages.erlang-solutions.com/site/esl/esl-erlang/FLAVOUR_1_general/esl-erlang_20.1.7-1~ubuntu~xenial_amd64.deb
# dpkg -i esl-erlang_20.1.7-1~ubuntu~xenial_amd64.deb

这次安装时也提示缺少依赖,所以我执行:

1
# apt-get -f install

结果是找到了相关的依赖包,输入 y 进行安装。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
root@b792ae940e3e:/app# ls
esl-erlang_20.1.7-1~ubuntu~xenial_amd64.deb rabbitmq-server_3.7.0-1_all.deb
root@b792ae940e3e:/app# dpkg -i esl-erlang_20.1.7-1~ubuntu~xenial_amd64.deb
Selecting previously unselected package esl-erlang.
(Reading database ... 7744 files and directories currently installed.)
Preparing to unpack esl-erlang_20.1.7-1~ubuntu~xenial_amd64.deb ...
Unpacking esl-erlang (1:20.1.7) ...
dpkg: dependency problems prevent configuration of esl-erlang:
esl-erlang depends on libwxbase2.8-0 | libwxbase3.0-0 | libwxbase3.0-0v5; however:
Package libwxbase2.8-0 is not installed.
Package libwxbase3.0-0 is not installed.
Package libwxbase3.0-0v5 is not installed.
esl-erlang depends on libwxgtk2.8-0 | libwxgtk3.0-0 | libwxgtk3.0-0v5; however:
Package libwxgtk2.8-0 is not installed.
Package libwxgtk3.0-0 is not installed.
Package libwxgtk3.0-0v5 is not installed.
esl-erlang depends on libsctp1; however:
Package libsctp1 is not installed.
dpkg: error processing package esl-erlang (--install):
dependency problems - leaving unconfigured
Errors were encountered while processing:
esl-erlang
root@b792ae940e3e:/app# apt-get -f install
Reading package lists... Done
Building dependency tree
Reading state information... Done
Correcting dependencies... Done
The following additional packages will be installed:
......
......

然后再次安装 esl-erlang_20.1.7-1~ubuntu~xenial_amd64.deb 包:

1
# dpkg -i esl-erlang_20.1.7-1~ubuntu~xenial_amd64.deb

最后,安装RabbitMQ的包:

1
# dpkg -i rabbitmq-server_3.6.14-1_all.deb

如果中途再出现缺少依赖包的问题,通过 apt-get -f install 来解决。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
root@b792ae940e3e:/app# dpkg -i rabbitmq-server_3.7.0-1_all.deb
Selecting previously unselected package rabbitmq-server.
(Reading database ... 29232 files and directories currently installed.)
Preparing to unpack rabbitmq-server_3.7.0-1_all.deb ...
Unpacking rabbitmq-server (3.7.0-1) ...
dpkg: dependency problems prevent configuration of rabbitmq-server:
rabbitmq-server depends on logrotate; however:
Package logrotate is not installed.
rabbitmq-server depends on socat; however:
Package socat is not installed.
dpkg: error processing package rabbitmq-server (--install):
dependency problems - leaving unconfigured
Processing triggers for systemd (229-4ubuntu21) ...
Errors were encountered while processing:
rabbitmq-server
root@b792ae940e3e:/app# apt-get -f install
Reading package lists... Done
Building dependency tree
Reading state information... Done
Correcting dependencies... Done
The following additional packages will be installed:
cron libpopt0 libwrap0 logrotate socat tcpd
Suggested packages:
anacron checksecurity exim4 | postfix | mail-transport-agent mailx
The following NEW packages will be installed:
cron libpopt0 libwrap0 logrotate socat tcpd
0 upgraded, 6 newly installed, 0 to remove and 2 not upgraded.
1 not fully installed or removed.
Need to get 522 kB of archives.
After this operation, 1674 kB of additional disk space will be used.
Do you want to continue? [Y/n]

Run RabbitMQ Server

启动 RabbitMQ 服务:

1
# service rabbitmq-server start

安装 RabbitMQWeb 管理插件:

1
2
# rabbitmq-plugins enable rabbitmq_management
# service rabbitmq-server restart

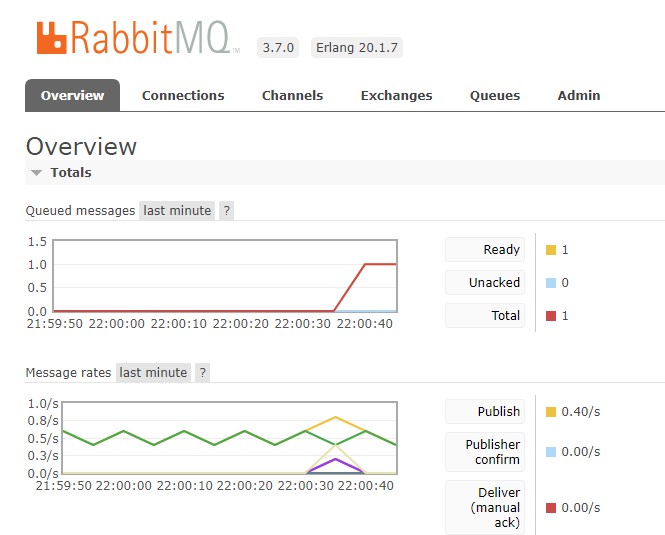

打开浏览器登录:http://127.0.0.1:15672,登录账号密码默认都是 guest

1
2
3
4
5
6
7
8
9
10
11
12
13
root@730778dc65bd:/app# rabbitmq-plugins enable rabbitmq_management
The following plugins have been enabled:
mochiweb
webmachine
rabbitmq_web_dispatch
amqp_client
rabbitmq_management_agent
rabbitmq_management
Applying plugin configuration to rabbit@730778dc65bd... started 6 plugins.
root@730778dc65bd:/app# service rabbitmq-server restart
* Restarting RabbitMQ Messaging Server rabbitmq-server [ OK ]
root@730778dc65bd:/app#

测试代码:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
## 查看rabbitmq状态
root@730778dc65bd:/app# rabbitmqctl status
Status of node rabbit@730778dc65bd ...
Error: unable to connect to node rabbit@730778dc65bd: nodedown
DIAGNOSTICS
===========
attempted to contact: [rabbit@730778dc65bd]
rabbit@730778dc65bd:
* connected to epmd (port 4369) on 730778dc65bd
* epmd reports: node 'rabbit' not running at all
no other nodes on 730778dc65bd
* suggestion: start the node
current node details:
- node name: 'rabbitmq-cli-9223@730778dc65bd'
- home dir: /var/lib/rabbitmq
- cookie hash: MwPrvM8WUeAkWCiIWYw2fg==
root@730778dc65bd:/app#
root@730778dc65bd:/app# service rabbitmq-server start
* Starting RabbitMQ Messaging Server rabbitmq-server [ OK ]
root@730778dc65bd:/app# rabbitmqctl status
Status of node rabbit@730778dc65bd ...
[{pid,9527},
{running_applications,[{rabbit,"RabbitMQ","3.5.7"},
{mnesia,"MNESIA CXC 138 12","4.13.3"},
{xmerl,"XML parser","1.3.10"},
{os_mon,"CPO CXC 138 46","2.4"},
{sasl,"SASL CXC 138 11","2.7"},
{stdlib,"ERTS CXC 138 10","2.8"},
{kernel,"ERTS CXC 138 10","4.2"}]},
{os,{unix,linux}},
{erlang_version,"Erlang/OTP 18 [erts-7.3] [source] [64-bit] [smp:2:2] [async-threads:64] [kernel-poll:true]\n"},
{memory,[{total,83922208},
{connection_readers,0},
{connection_writers,0},

RabbitMQ中的vitrual host

Virtual host,是起到隔离作用的。每一个 vhost 都有自己的 exchangesqueues,它们互不影响。不同的应用可以跑在相同的 rabbitmq 上,使用 vhost 把它们隔离开就行。默认情况下,rabbitmq 安装后,默认的 vhost/

创建用户并设置虚拟主机

可以发现上面我们通过 guest 用户在其他电脑上或外网段访问时,会提示 User can only log in via localhost ,这是因为 guest 是仅允许在 localhost 下才能登陆的。如果我们想在外部访问,可以创建一个新的账户。

创建用户的同时为该用户指定允许访问的虚拟主机 myvhost

1
2
3
# rabbitmqctl add_user myuser mypassword
# rabbitmqctl add_vhost myvhost
# rabbitmqctl set_permissions -p myvhost myuser ".*" ".*" ".*"

此时,新创建的账户 myuser 也并没有权限在外网访问,可以用 set_user_tags 为用户设置角色:

1
# rabbitmqctl set_user_tags myuser administrator

然后我们就能在外网通过地址 http://192.168.5.107:15673/ 来访问管理端了。

示例:

1
2
3
4
5
6
7
8
9
10
11
# User: myuser
# UserPwd: hello
# VHost: hellohost
root@b792ae940e3e:/app# rabbitmqctl add_user myuser hello
Adding user "myuser" ...
root@b792ae940e3e:/app# rabbitmqctl add_vhost hellohost
Adding vhost "hellohost" ...
root@b792ae940e3e:/app# rabbitmqctl set_permissions -p hellohost myuser ".*" ".*" ".*"
Setting permissions for user "myuser" in vhost "hellohost" ...
root@b792ae940e3e:/app#

然后重启服务:

1
# service rabbitmq-server restart

Celery

Celery官方推荐使用 RabbitMQRedis 来作为中间件。设置也很简单,通过 brokerbackend 参数即可绑定。

broker 和 backend

可以用RabbitMQ和Redis来作为broker或backend:

1
app = Celery('tasks', backend='amqp', broker='amqp://')
1
app = Celery('tasks', backend='redis://localhost', broker='amqp://')

注意,虽然推荐使用RabbitMQ来作为 broker,但不推荐其作为 backend 。具体原因我会在后面的文章中说明。

中间人RabbitMQ

RabbitMQ 功能完备、稳定,是一个非常可靠的选择。

1
2
3
BROKER_URL =transport://userid:password@hostname:port/virtual_host
BROKER_URL = 'amqp://guest:guest@localhost:5672//'

完整的格式为:

1
CELERY_BROKER_URL = 'amqp://[YOUR_NAME]:[PASSWORD]@localhost:[PORT]/[VHOST_NAME]'
中间人Redis

RabbitMQ 相比,使用 Redis 作为 broker 缺点是可能因为掉电或异常退出导致数据丢失,优点是使用简单。

以下命令可以同时安装 celeryredis 相关的依赖,但是 redis server 还是必须单独安装的。

1
$ pip install -U celery[redis] # -U 的意思是把所有指定的包都升级到最新的版本
1
BROKER_URL = 'redis://localhost:6379//'
安装celery

先安装 python3 pip3 等依赖:

1
# apt-get install -y python3 python3-pip
1
2
3
# pip3 install celery
# 或者:
# pip3 install -U Celery

创建一个 tasks.py 文件:

1
2
3
4
5
6
7
from celery import Celery
app = Celery('tasks', broker='amqp://guest@localhost//')
@app.task
def add(x, y):
return x + y

注意,其中的:

1
app = Celery('tasks', broker='amqp://guest@localhost//')

broker 要改为上面设置的RabbitMQ的信息,所以结果为:

1
app = Celery('tasks',broker='amqp://myuser:hello@localhost:5672/hellohost')

Celery 的第一个参数是当前模块的名称,这个参数是必须的,这样的话名称可以自动生成。
第二个参数是中间人关键字参数,指定你所使用的消息中间人的 URL。

保存结果

执行完成后的结果,Celery 需要在某个地方存储或发送任务处理后的状态,可以通过 backend 参数来指定。格式和 broker 一致。

完整的 tasks.py:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
#!/usr/bin/env python3
# -*- coding: utf-8 -*-
from celery import Celery
app = Celery('tasks',
broker='amqp://myuser:hello@localhost:5672/hellohost',
backend='amqp://myuser:hello@localhost:5672/hellohost'
)
@app.task
def add(x, y):
return x + y
运行Celery

用 worker 参数执行程序:

1
$ celery -A tasks worker --loglevel=info

输出:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
root@b792ae940e3e:/app# celery -A tasks worker --loglevel=info
/usr/local/lib/python3.5/dist-packages/celery/platforms.py:795: RuntimeWarning: You're running the worker with superuser privileges: this is
absolutely not recommended!
Please specify a different user using the -u option.
User information: uid=0 euid=0 gid=0 egid=0
uid=uid, euid=euid, gid=gid, egid=egid,
/usr/local/lib/python3.5/dist-packages/celery/backends/amqp.py:68: CPendingDeprecationWarning:
The AMQP result backend is scheduled for deprecation in version 4.0 and removal in version v5.0. Please use RPC backend or a persistent backend.
alternative='Please use RPC backend or a persistent backend.')
-------------- celery@b792ae940e3e v4.1.0 (latentcall)
---- **** -----
--- * *** * -- Linux-4.4.0-42-generic-x86_64-with-Ubuntu-16.04-xenial 2017-12-09 13:50:06
-- * - **** ---
- ** ---------- [config]
- ** ---------- .> app: tasks:0x7f97a8360dd8
- ** ---------- .> transport: amqp://myuser:**@localhost:5672/hellohost
- ** ---------- .> results: amqp://
- *** --- * --- .> concurrency: 2 (prefork)
-- ******* ---- .> task events: OFF (enable -E to monitor tasks in this worker)
--- ***** -----
-------------- [queues]
.> celery exchange=celery(direct) key=celery
[tasks]
. tasks.add
[2017-12-09 13:50:06,121: INFO/MainProcess] Connected to amqp://myuser:**@127.0.0.1:5672/hellohost
[2017-12-09 13:50:06,137: INFO/MainProcess] mingle: searching for neighbors
[2017-12-09 13:50:07,178: INFO/MainProcess] mingle: all alone
[2017-12-09 13:50:07,228: INFO/MainProcess] celery@b792ae940e3e ready.

可以看到 celeryworker 已经准备就绪了。

查看 worker 完整的命令行参数列表:

1
2
3
$ celery worker --help
## 或者:
$ celery help
调用任务

使用 delay() 方法来调用任务。

新打开一个控制台界面,

1
$ docker exec -it celery1 /bin/bash

执行:

1
2
3
4
# python3
>>> from tasks import add
>>> add.delay(4, 4)

示例:

1
2
3
4
5
6
7
8
root@b792ae940e3e:/app# python3
Python 3.5.2 (default, Nov 23 2017, 16:37:01)
[GCC 5.4.0 20160609] on linux
Type "help", "copyright", "credits" or "license" for more information.
>>> from tasks import add
>>> add.delay(3,4)
<AsyncResult: e1ae8ea3-8a8f-47c5-befb-e6ba975f0580>
>>>

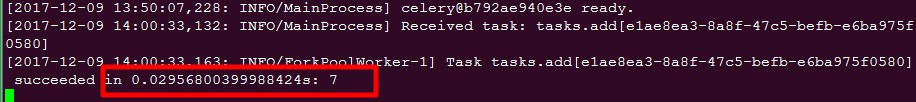

执行结果:

mark

同时,也可以在 RabbitMQ web 管理页面看到新增了一个任务并存储了处理结果:

mark

为了得到调用任务后返回的 AsyncResult 实例,通过一个参数来接收:

1
>>> result=add.delay(3,4)

ready() 方法查看任务是否完成处理:

1
2
>>> result.ready()
True #结果返回 `True` 表示任务处理完成

这里是异步调用,如果我们需要返回的结果,那么要等 ready 状态为 True 才行。

执行结果:

1
2
3
4
5
[2017-12-09 13:50:07,228: INFO/MainProcess] celery@b792ae940e3e ready.
[2017-12-09 14:00:33,132: INFO/MainProcess] Received task: tasks.add[e1ae8ea3-8a8f-47c5-befb-e6ba975f0580]
[2017-12-09 14:00:33,163: INFO/ForkPoolWorker-1] Task tasks.add[e1ae8ea3-8a8f-47c5-befb-e6ba975f0580] succeeded in 0.02956800399988424s: 7
[2017-12-09 14:17:21,033: INFO/MainProcess] Received task: tasks.add[c178619e-3af3-41ed-8d2c-6371de80a601]
[2017-12-09 14:17:21,058: INFO/ForkPoolWorker-1] Task tasks.add[c178619e-3af3-41ed-8d2c-6371de80a601] succeeded in 0.024445844999718247s: 7

相关参考

坚持原创技术分享,您的支持将鼓励我继续创作!
